Loading Dock Gate

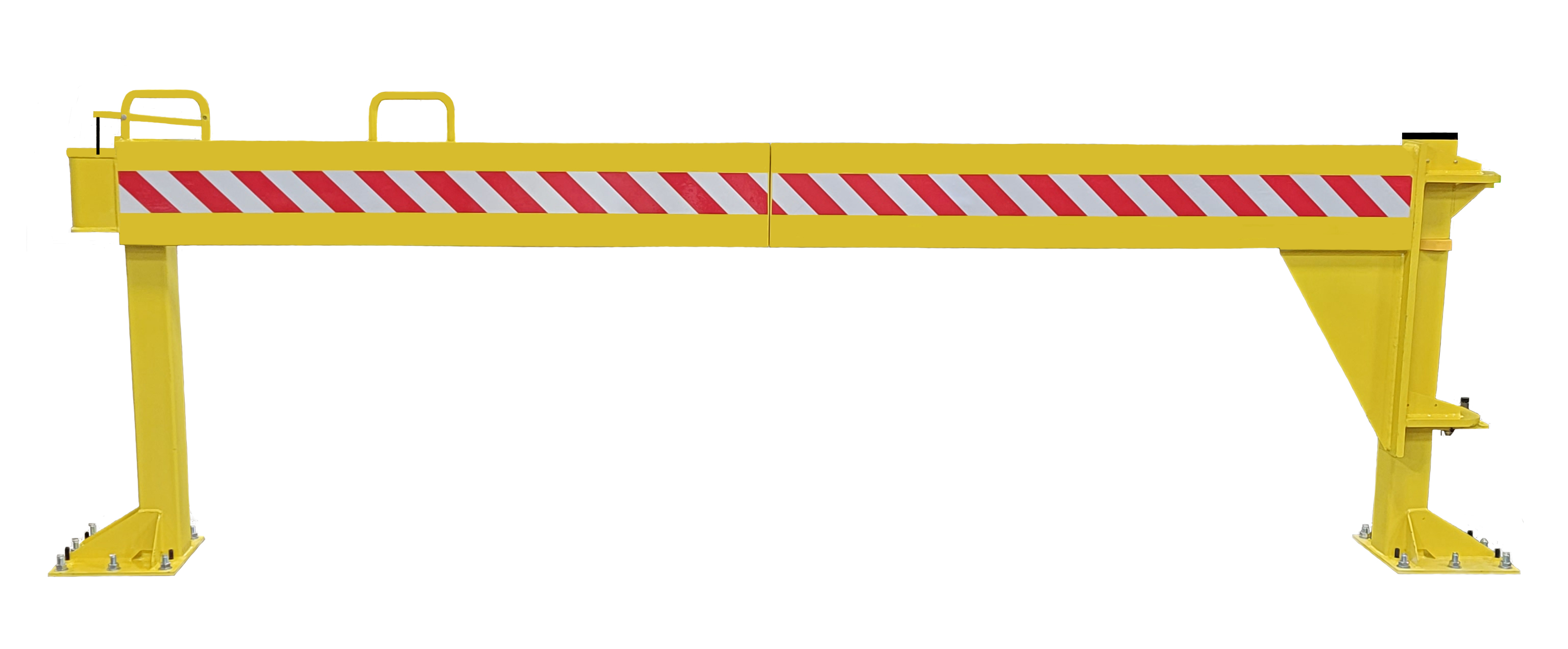

Prevent accidents at an open loading dock with the Dock GUARD. This barrier gate also protects overhead doors or other equipment from damage caused by forklifts. The Dock GUARD 10 is designed with a single safety rail that stands 42” tall, heavy-duty bollards, and easy-glide hinges for effortless opening/closing. The Dock GUARD 20 has the same compact foot print as the 10, plus the addition of a heavy-duty double panel design for added safety.

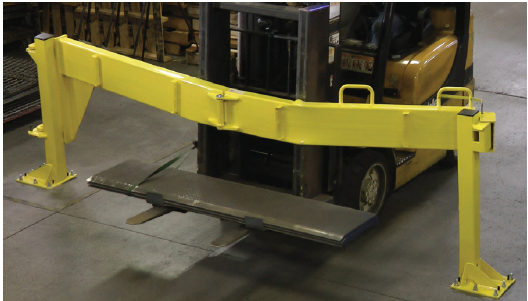

The Dock GUARD is manually operated and simply folds in half with easy glide hinges that allow full pass-through clearance. It’s proven design can stop a 13,500 lb. forklift traveling at 6.5 mph. The Dock GUARD installs quickly by simply bolting the unit to the finished floor. The Dock GUARD is available in widths up to 10 ft.


Part No. Gate Width
DG-72 6'
DG-78 6'-6"
DG-84 7'
DG-90 7'-6"
DG-96 8'
DG-102 8'-6"
DG-108 9'
DG-114 9'-6"
DG-120 10'
